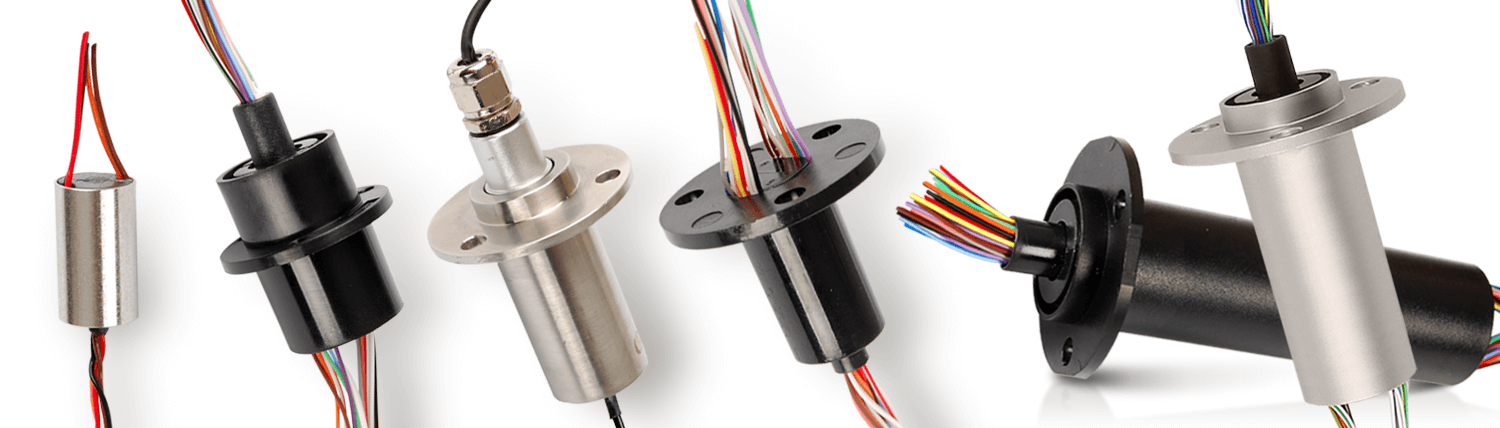

Miniature Through Bore Slip Ring

What is Miniature Through Bore Slip Ring?

Miniature through bore Slip Ring is a high-performance electrical connection component used to transmit power and signals in rotating structures. It has a through hole (bore) in the center, which is suitable for installation on rotating shafts or pipes while maintaining continuous and stable electrical signal transmission. This type of Slip Ring is widely used in medical equipment, robots, drones, optical systems and other precision rotating equipment.

Working Principle of Miniature Through Bore Slip Ring

The core working principle of the miniature hole slip ring is based on precision conductive technology, which uses special alloy brushes and precious metal rings to achieve low-noise and low-friction electrical signal transmission. When the slip ring rotates with the shaft, the internal conductive brush maintains reliable electrical contact with the conductive ring, allowing current or data to be transmitted from the fixed end to the rotating end without loss.

Product Features of OBABO Miniature Hole Slip Ring

Ultra-small design - suitable for space-constrained applications, the aperture range can be customized, such as 3mm, 5mm, 8mm, etc.

Low friction and long life - using high wear-resistant materials, supporting a service life of more than 50 million revolutions

High stability - with low resistance fluctuation (as low as 10mΩ) to ensure stable signal transmission.

Multi-channel options - can support 2-30 power or signal channels to meet different application requirements.

High-speed rotation - the maximum speed can reach 3000RPM, suitable for high-speed application scenarios.

Wide voltage support - can adapt to a variety of voltage specifications such as 5V, 12V, 24V, 48V, etc.

Miniature Through Bore Slip Ring Application Fields

Medical equipment: such as CT scanners, surgical robots and other equipment that require stable signal transmission.

Industrial automation: Rotating equipment used to transmit sensor signals and power.

Drones: used for signal and power transmission in rotating components such as gimbals and radars.

Optical systems: such as rotating cameras, photoelectric radars, etc.

Robots: Robotic arm joints, 360-degree rotating devices.

Why choose OBABO?

As a professional slip ring custom supply manufacturer, OBABO has more than 10 years of industry experience and can provide customized Miniature Through Bore Slip Ring solutions according to customer needs. We provide:

Standard products and customized options, support customization of different apertures, number of channels, current, voltage and other parameters.

Strict quality control, all products undergo high and low temperature tests, vibration tests, electrical performance tests, etc.

Global supply support, ensure fast delivery, and provide complete technical support services.

Consult now

If you need to customize micro hole Slip Rings, please contact our technical team for free solution design and quotation!

OBABO - your trusted slip ring manufacturing expert!
