Fluid Slip Ring

Fluid Slip Rings are advanced rotary electrical connectors designed to transmit power and signals through a rotating interface while accommodating the flow of fluids.

Fluid Slip Rings are advanced rotary electrical connectors designed to transmit power and signals through a rotating interface while accommodating the flow of fluids. They typically consist of an inner rotor and an outer stator, both equipped with conducting rings and brushes or mercury contacts that maintain electrical continuity as the rotor turns. The unique design incorporates channels or passages for fluids, allowing them to pass through the slip ring assembly without interrupting the electrical connection.

Fluid Slip Ring

The conducting rings within the Fluid Slip Ring are precision-engineered to ensure reliable and consistent electrical transmission. These rings are often made of high-conductivity materials, such as copper or silver, and are carefully aligned to maintain low contact resistance and minimize wear. The brushes or mercury contacts make continuous contact with the rings, ensuring that power and signals are seamlessly transferred as the rotor rotates.

One of the key advantages of Fluid Slip Rings is their ability to combine electrical and fluid transfer in a single compact device. This multi-functional capability makes them ideal for applications where both electrical power and fluid flow are required to be transmitted through a rotating joint. The fluid channels can accommodate various types of liquids, including lubricants, coolants, and hydraulic fluids, ensuring that the rotating components remain well-lubricated and cooled.

Fluid Slip Rings have diverse applications across various industries, including aerospace, marine, industrial machinery, and robotics. In aerospace applications, they are often used in gimbal systems and antenna mounts to transmit power and signals while allowing for precise positioning and movement. In marine environments, Fluid Slip Rings enable the transfer of power and data between stationary and rotating components in steering systems, propulsion units, and other critical equipment.

Industrial Fluid Slip Ring

The Industrial Fluid Slip Ring is a robust and versatile solution designed for harsh and demanding applications. It combines high-performance electrical transmission with reliable fluid transfer, making it suitable for use in heavy-duty machinery, conveyors, and other industrial equipment. The industrial-grade design ensures durability and longevity, even in extreme conditions such as high temperatures, vibrations, and corrosive environments.

Marine Fluid Slip Ring

The Marine Fluid Slip Ring is specifically engineered to withstand the challenging conditions of marine environments. It features corrosion-resistant materials and robust sealing mechanisms to prevent ingress of water and other contaminants. The slip ring assembly is designed to provide reliable electrical and fluid transfer in marine steering systems, propulsion units, and other critical components, ensuring smooth and efficient operation even in the most demanding conditions.

Robotic Fluid Slip Ring

The Robotic Fluid Slip Ring is a compact and lightweight solution designed for use in robotic systems. It allows for the seamless transfer of power and signals while accommodating the flow of fluids necessary for lubrication and cooling. The slip ring's design ensures minimal interference with the robot's movements, making it ideal for applications where precision and agility are crucial.

High-Speed Fluid Slip Ring

The High-Speed Fluid Slip Ring is optimized for applications requiring high-speed rotation. It features advanced brushless technology or mercury contacts to minimize wear and friction, ensuring reliable and consistent electrical transmission even at high speeds. The slip ring's design also accommodates high-flow fluid channels, making it suitable for applications where high-pressure fluids need to be transmitted through a rotating joint.

Fluid Slip Ring Systems

Fluid Slip Ring Systems refer to complete assemblies that incorporate the slip ring, fluid channels, and any necessary accessories or mounting hardware. These systems are designed to provide a turnkey solution for applications requiring both electrical and fluid transfer through a rotating interface. They are often custom-engineered to meet specific requirements, ensuring optimal performance and reliability in even the most demanding applications.

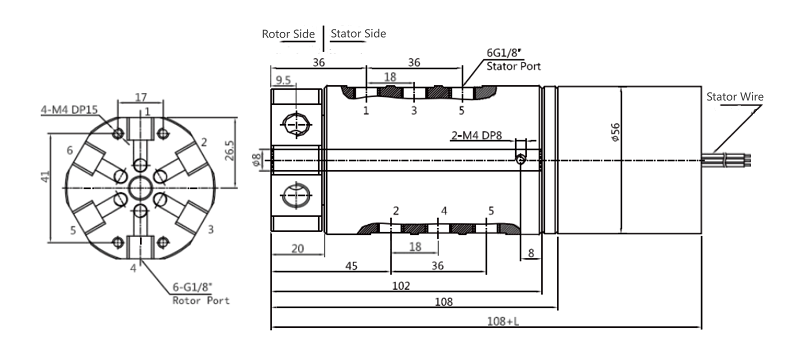

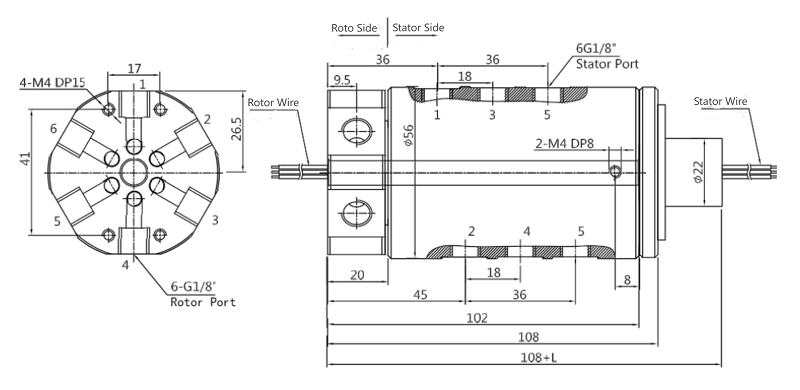

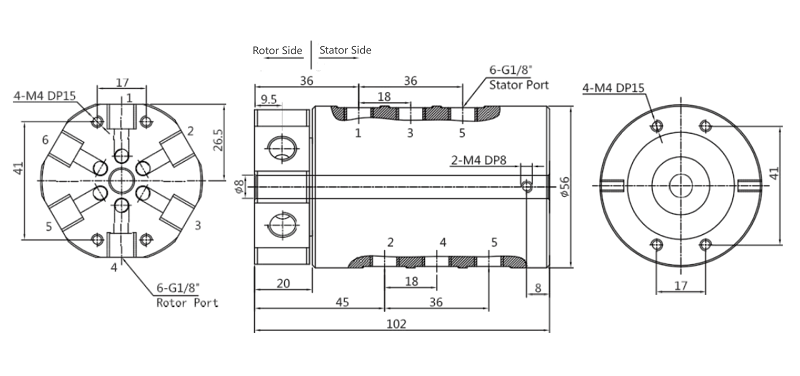

Parameter Drawings

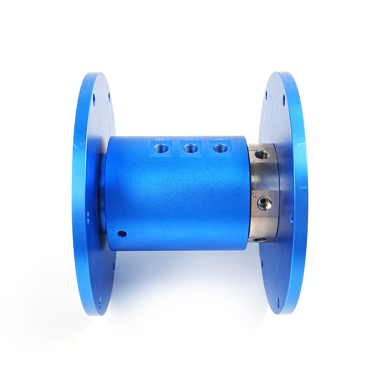

Hydraulic Pneumatic Rotary Joint XQ06001
