Standard Capsule Slip Ring

Standard Capsule Slip Ring Definition and Overview

The Standard Capsule Slip Ring is a specially designed rotating electrical connection device. It adopts a capsule like structure and contains precision conductive rings and brush components inside, which can achieve stable transmission of current, signals, etc. during rotation. The standard Capsule Slip Ring has been widely used in multiple fields due to its unique structure and excellent performance.

Characteristics

Compact structure: The Standard Capsule Slip Ring adopts a compact capsule shaped design, with small volume, light weight, and easy installation and integration.

Stable transmission: Through precise conductive rings and brush components, Standard Capsule Slip Rings can achieve stable transmission of current, signals, etc. during rotation, with high transmission efficiency and low signal loss.

Wear resistant and durable: The conductive ring and brush wire components are made of high-quality materials, which have good wear resistance and durability, and can operate stably for a long time.

High protection level: Standard capsule slip rings usually have a high protection level, which can resist the erosion of external environments such as dust and moisture, and are suitable for harsh working conditions.

Function

Rotating electrical connection: The core function of standard capsule slip rings is to achieve rotating electrical connection, enabling stable transmission of current and signals between rotating and fixed components.

Data transmission: In addition to current transmission, standard capsule slip rings can also transmit various digital and analog signals to meet the data transmission needs of complex systems.

Dynamic monitoring: In rotating machinery systems, standard capsule slip rings can be used to dynamically monitor the status of rotating components, such as temperature, pressure, and other parameters, to improve the reliability and safety of the system.

Parameter Drawings

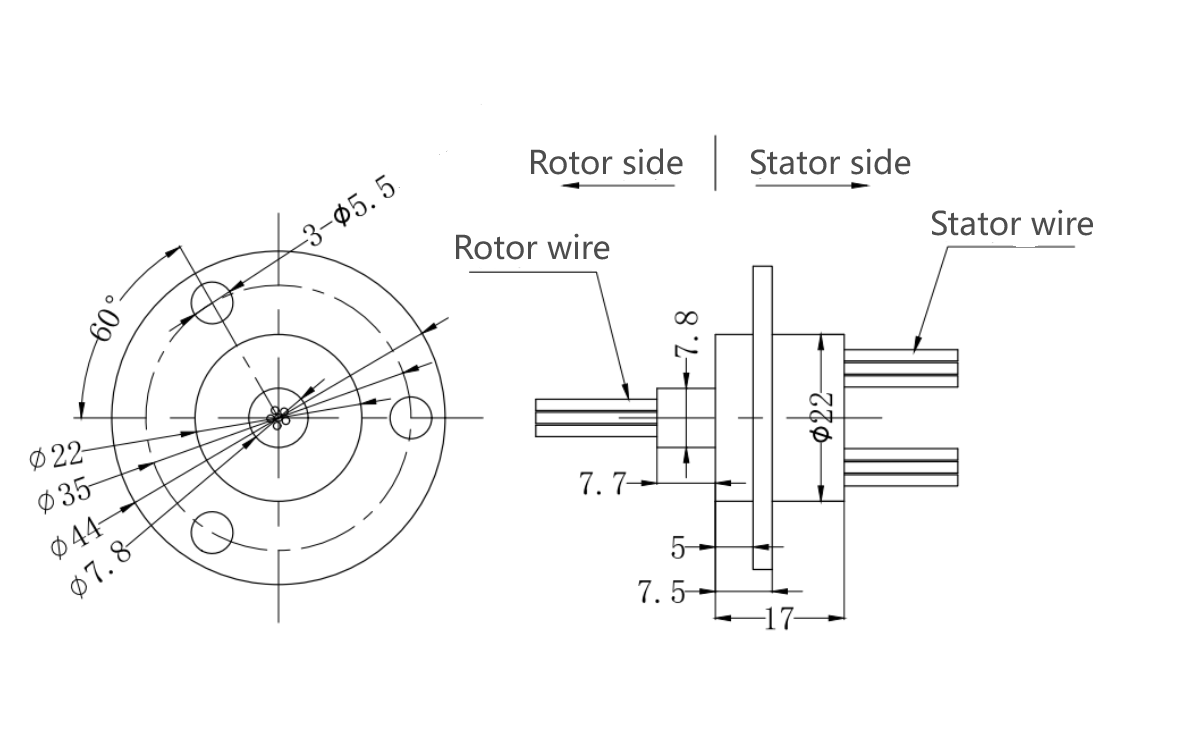

Standard Capsule Slip Ring XC06-F

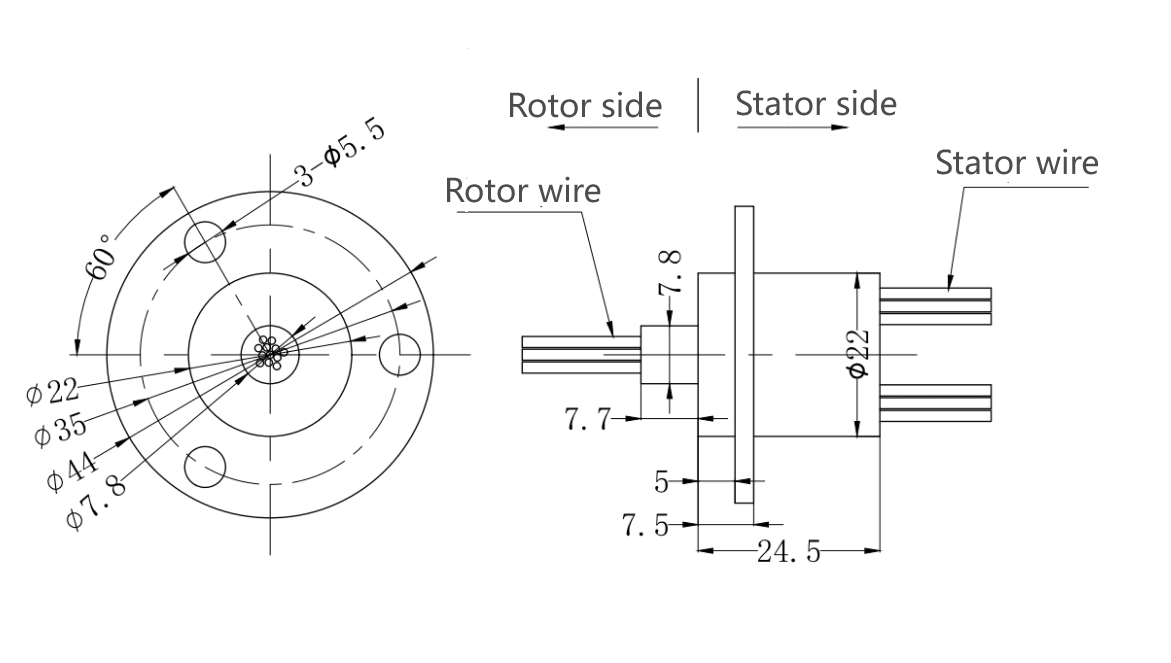

Standard Capsule Slip Ring XC12-F

Application Fields

Aerospace: In the aerospace field, standard capsule slip rings are widely used for electrical connections and data transmission of rotating components such as radar antennas and satellite communications.

Automation equipment: In automation equipment, standard capsule slip rings are commonly used for electrical connections of rotating components such as robot joints and rotating workbenches to achieve automated control of the equipment.

Security monitoring: In security monitoring systems, standard capsule slip rings can be used for electrical connections and data transmission of rotating components such as pan tilt cameras, improving the flexibility and stability of the monitoring system.

Medical equipment: In medical equipment, standard capsule slip rings are used for electrical connections and data transmission of rotating components such as CT machines and MRI machines, ensuring the normal operation and accuracy of medical equipment.

Other fields: In addition, standard capsule slip rings are widely used in wind power generation, shipbuilding, military equipment and other fields, providing stable and reliable electrical connections and data transmission for various rotating components.

Maintenance and upkeep

Regular inspection: Regularly inspect the standard capsule slip ring to observe whether its appearance is intact and whether the conductive ring and brush wire components are severely worn. If any problems are found, they should be replaced or repaired in a timely manner.

Cleaning and maintenance: Keep the standard capsule slip ring clean to prevent impurities such as dust and moisture from entering the interior. Special cleaning agents can be used for cleaning, but it is important to avoid using highly corrosive cleaning agents.

Lubrication treatment: For standard capsule slip rings that require lubrication, an appropriate amount of lubricant should be added regularly to reduce friction and wear, and improve service life.

Avoid overload: During use, standard capsule slip rings should be avoided from bearing excessive current or signal loads to prevent damage to their internal structure.

Precautions

Installation requirements: When installing standard capsule slip rings, it is necessary to strictly follow the requirements of the product manual to ensure correct and secure installation. Avoid damaging the conductive ring and brush wire components of the slip ring during installation.

Operating environment: Standard capsule slip rings should operate under suitable conditions and avoid use in harsh environments such as extreme temperature and humidity. At the same time, it should be ensured that the usage environment is free of corrosive gases or liquids.

Operation specifications: During use, the operation specifications should be followed to avoid improper operation of the standard capsule slip ring, such as excessive rotation, impact, etc.

Storage requirements: Standard capsule slip rings that are not used for a long time should be stored in a dry, ventilated, and non corrosive gas environment to avoid moisture and oxidation of their internal components.

Repair and replacement: When a malfunction or performance degradation is found in the standard capsule slip ring, timely repair or replacement should be carried out. During the repair or replacement process, it should be ensured to use products of the same model and specifications as the original slip ring to ensure its performance and compatibility.

In summary, the Standard Capsule Slip Ring has been widely used in multiple fields due to its unique structure and excellent performance. During use, it is necessary to strictly follow the operating specifications and maintenance requirements to ensure its stable and reliable operation. Meanwhile, with the continuous development of technology, the performance and application areas of standard capsule slip rings will also continue to expand and improve.
