Rotary Electrical Joint

The Rotary Electrical Joint (REJ) is a sophisticated and versatile connectivity solution designed to transmit electrical signals and power through rotating interfaces.

The Rotary Electrical Joint (REJ) is a sophisticated and versatile connectivity solution designed to transmit electrical signals and power through rotating interfaces. It typically consists of a series of contact elements, such as brushes or rings, that maintain electrical continuity as the joint rotates. These contact elements are housed within a robust and precision-engineered housing, ensuring reliable performance and durability.

The core components of the Rotary Electrical Joint are the stationary and rotating contacts, which are designed to make and maintain electrical connections as the joint rotates. These contacts can be made from various materials, such as gold-plated copper or silver, to optimize conductivity and wear resistance. The housing of the REJ is typically constructed from durable materials like stainless steel or aluminum, providing protection against environmental factors and ensuring long-term reliability.

One of the key advantages of the Rotary Electrical Joint is its ability to transmit electrical signals and power continuously through a rotating interface. This makes it ideal for applications where continuous rotation is required, such as in robotics, automation systems, and aerospace equipment. The REJ allows for seamless integration into these systems, enabling them to function efficiently and reliably.

Rotary Electrical Joints have various applications across multiple industries. In robotics, they are used to transmit power and signals between the stationary base and rotating components, enabling the robot to perform complex movements and tasks. In automation systems, REJs are crucial for maintaining electrical continuity in conveyor belts, rotating platforms, and other moving parts. Aerospace equipment often relies on REJs to transmit power and data between rotating components, such as gyroscopes and antennas, ensuring accurate and reliable performance.

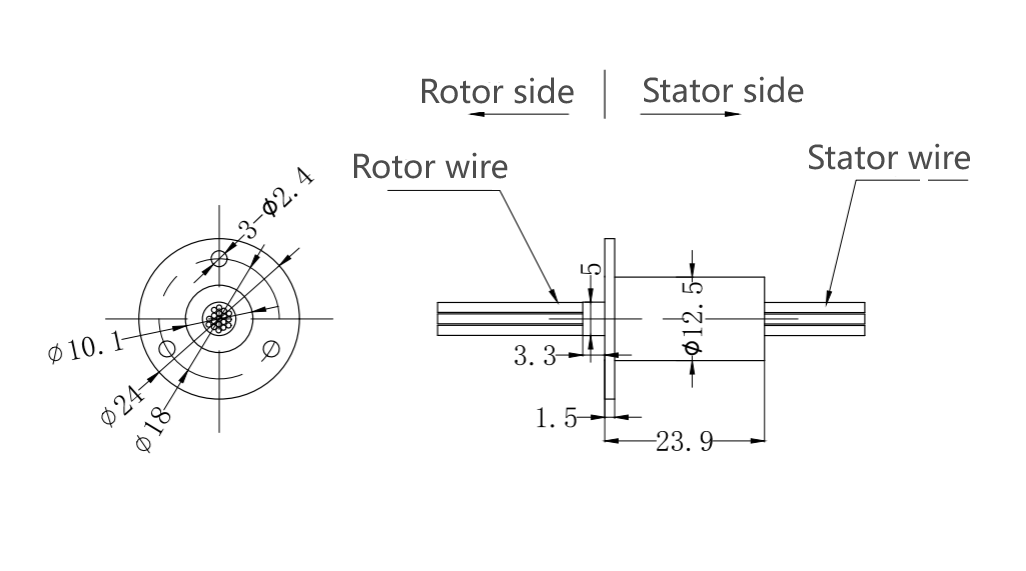

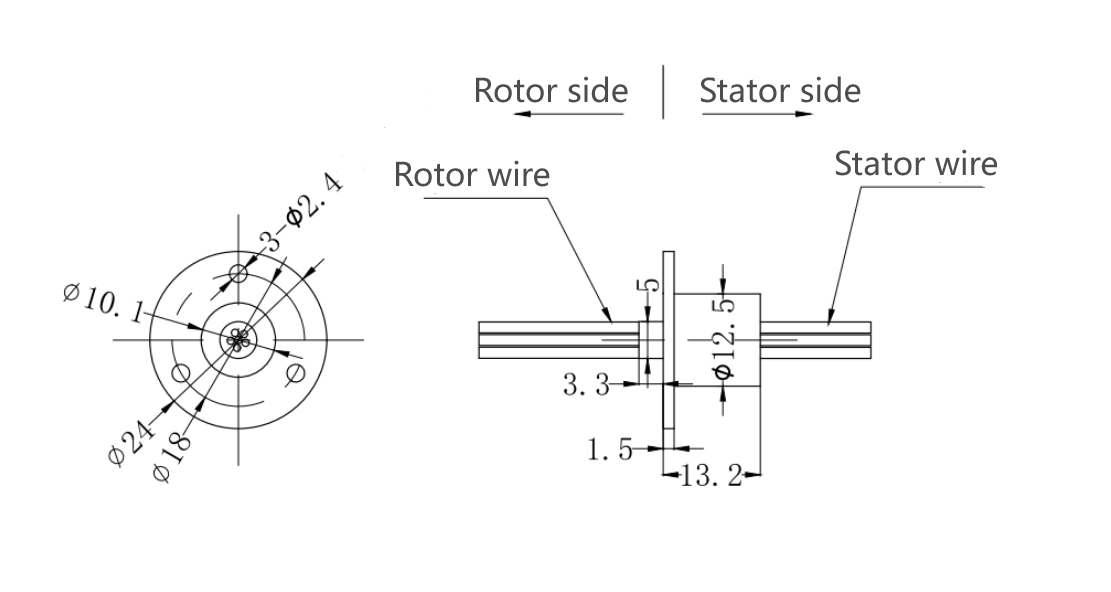

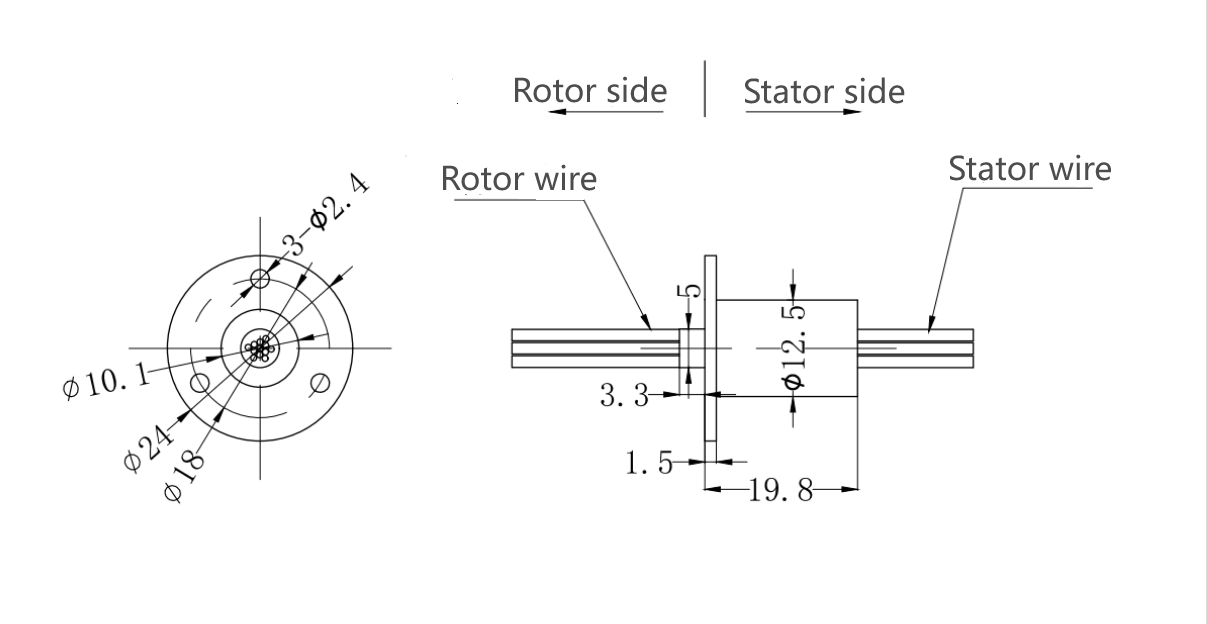

Parameter Drawings

Rotary Electrical Joint XMC06-F

Rotary Electrical Joint XMC12-F

Rotary Electrical Joint XMC18-F

REJ for Robotics
The REJ for Robotics is a specialized connectivity solution designed to meet the unique challenges of robotic systems. It features high-quality contacts and housing materials to ensure reliable performance and durability, even under extreme conditions. The REJ for Robotics is capable of transmitting a wide range of signals and power levels, making it suitable for a variety of robotic applications, including industrial automation, medical robotics, and military systems.

REJ for Automation Systems
The REJ for Automation Systems is a robust and reliable connectivity solution that enables seamless integration into conveyor belts, rotating platforms, and other moving parts. Its precision-engineered contacts and housing ensure continuous electrical continuity, even during high-speed operations. This REJ is designed to withstand the rigors of industrial environments, providing long-term reliability and performance.

Rotary Electrical Joint

REJ for Aerospace Equipment
The REJ for Aerospace Equipment is a precision-engineered connectivity solution that meets the stringent requirements of the aerospace industry. It is designed to transmit power and data between rotating components, such as gyroscopes and antennas, ensuring accurate and reliable performance. The REJ for Aerospace Equipment features high-quality materials and advanced manufacturing techniques to ensure durability and reliability, even in extreme conditions.

Industrial Rotary Electrical Joint
The Industrial Rotary Electrical Joint is a versatile connectivity solution designed for use in a wide range of industrial applications. Its robust design and high-quality materials make it suitable for harsh environments and demanding conditions. The Industrial REJ can transmit a wide range of signals and power levels, making it an ideal choice for automation systems, conveyors, and other industrial machinery.

Precision Rotary Electrical Joint
The Precision Rotary Electrical Joint is a specialized connectivity solution designed for applications requiring high accuracy and reliability. Its precision-engineered contacts and housing ensure minimal electrical noise and interference, making it suitable for sensitive applications such as medical robotics and precision instrumentation. The Precision REJ is capable of transmitting a wide range of signals and power levels, with exceptional durability and reliability.

In conclusion, the Rotary Electrical Joint is a versatile and reliable connectivity solution designed to meet the unique challenges of rotating interfaces. Its precision-engineered components and robust design make it suitable for a wide range of applications, including robotics, automation systems, and aerospace equipment. With its ability to transmit electrical signals and power continuously through a rotating interface, the REJ is an essential component for ensuring the reliable and efficient operation of these systems.
